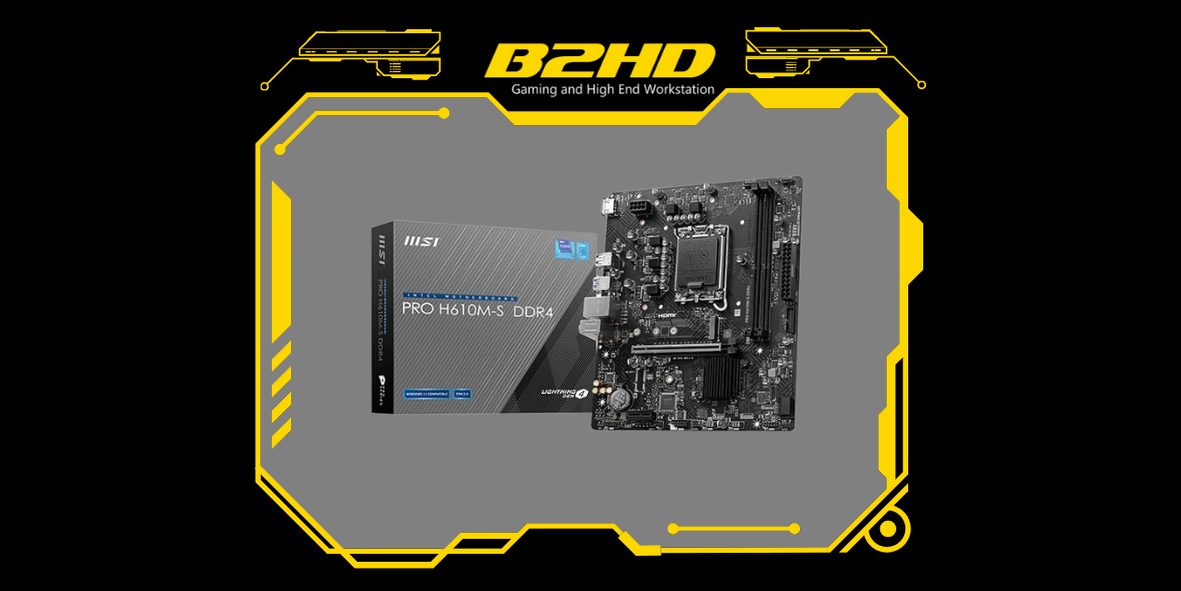

MSI Pro H610M-S DDR4 LGA1700 MicroATX Motherboard
Available Colors
MSI ( MSI Pro H610M-S DDR4 LGA1700 MicroATX Motherboard )
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
MSI ( MSI Pro H610M-S DDR4 LGA1700 MicroATX Motherboard )
ChipsetINTEL H610
CPUSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA 1700
Memory2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Onboard Graphics1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
2x SATA 6G
USB4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LANRealtek® RTL8111H Gigabit LAN
Internal IO1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
LED FEATURE4x EZ Debug LED
- BACK PANEL PORTS
HDMI™ - USB 2.0
- USB 5Gbps Type-A
- LAN port
- Audio Connectors
- USB 2.0
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT
PCB InfomATX
200mmx236.16mm
